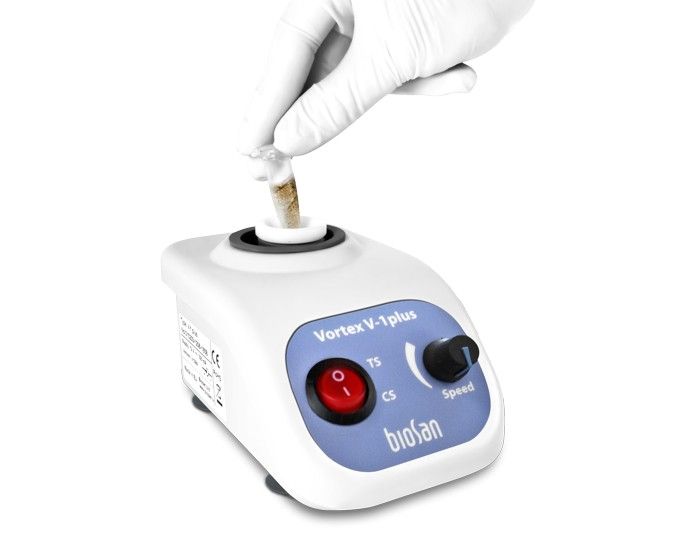

Personal Vortex


Vortex V-1 plus is an ideal instrument for gentle mixing to vigorous resuspension of cells and biological and chemical liquid components in tubes using eccentric mechanism.
Vortex has two modes:
  1. Continuous operation;
  2. Impulse operation (activated by pressing the cap with the tube's bottom).
Eccentric mixing principle +
Speed control range 750-3000 RPM
Mixing module for tubes from 1.5 to 50 ml
Maximum mixing volume 30 ml
Orbit 4 mm
Overall dimensions (W×D×H) 90x150x80 mm
Weight 0.8 kg
Input current/power consumption 12 V, 320 mA / 3.8 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V
